Executive Overview
Gemperts developed a high-precision AI-powered Railway Overhead Equipment (OHE) Measurement & Monitoring System designed to operate during high-speed train movement. The system automates the real-time detection and measurement of contact wire height, stagger, and mast alignment with ±10 mm accuracy, even under vibration and motion conditions. This solution transformed traditional manual inspections into a scalable, GPS-tagged, intelligent monitoring framework-enhancing railway safety, operational efficiency, and predictive maintenance capabilities.
The Challenge
Railway authorities faced critical operational limitations:
- Manual OHE inspections were time-consuming and inconsistent
- Accurate measurement during train movement was nearly impossible
- Deviations often went undetected due to delayed data processing
- No real-time alert mechanism for infrastructure abnormalities
- Compliance reporting required extensive manual documentation
- Scaling monitoring across 10+ lakh masts was operationally complex
The need was clear: a real-time, automated, and highly precise monitoring system capable of operating during high-speed runs.
Objectives
Deliver ±10 mm measurement precision at high speed
Replace manual inspection with AI-driven automation
Integrate GPS-based geo-tagging for mast-level traceability
Generate instant deviation alerts
Automate compliance-ready reporting
Scale efficiently across extensive railway networks
Technical Challenges
Developing a system for high-speed railway operations required solving multiple engineering challenges:
Stabilizing AI detection under vibration and motion blur
Processing 2K resolution video at 60 FPS with minimal latency
Synchronizing depth sensor data with GPS inputs in real time
Adapting detection models to varying lighting and weather conditions
Designing a scalable data pipeline for large infrastructure networks
The Solution
Gemperts engineered an advanced AI and computer vision platform optimized for real-time, high-speed railway environments.
Key Components of the System:
1.Intelligent Detection Engine

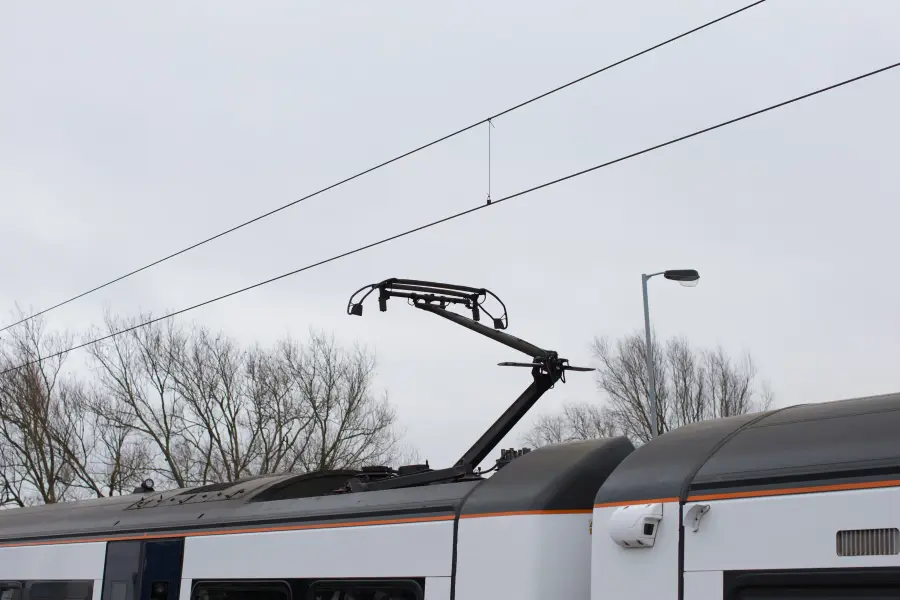

Real-time identification of pantographs, masts, and contact wires using optimized computer vision models.
2.3D Measurement Framework
High-frame-rate cameras combined with depth sensors capture synchronized visual and spatial data to compute precise measurements of Wire Height, Stagger, and Mast Alignment.
3.Edge AI Optimization
AI models optimized for edge inference to ensure low latency, stable detection in motion, and reliable performance at high speeds.
4.Unified Data Pipeline
Integrated visual data, depth measurements, and GPS coordinates into a single synchronized system for accurate geo-tagged logging.
5.Monitoring & Reporting Interface
Developed a desktop dashboard enabling live visualization, instant deviation alerts, automated Excel/CSV report generation, and mast-level traceable analytics.
System Architecture
Data Ingestion Layer
High-frame-rate cameras capture synchronized video, depth, and GPS inputs.
AI Processing Layer
Real-time detection of OHE components using trained deep learning models.
Measurement Engine
Depth data converted into precise physical measurements.
Geo-Tagging Module
GPS coordinates aligned with visual measurements for location accuracy.
Delivery Layer
Live dashboards, alerts, and structured reports provided to maintenance teams.
Results & Business Impact
Achieved ±10 mm precision during high-speed train operations
Stable AI performance under vibration and motion
70% reduction in manual inspection time
Real-time deviation alerts reduced maintenance delays
GPS-tagged data improved audit and compliance tracking
Enabled predictive maintenance for large-scale railway networks
Scalable system architecture supporting 10+ lakh masts
Conclusion
By combining AI, computer vision, depth sensing, and real-time data synchronization, Gemperts delivered a next-generation OHE monitoring solution that enhances railway infrastructure safety and operational efficiency.
This project demonstrates Gemperts' capability to design and deploy mission-critical AI systems for complex industrial environments.
